Products:

Brass wire of different diameters is proposed to be manufactured. The finished goods will be used as Electrodes of EDM cutting machines primarily in Automotive Industry and also in Aerospace and Agro Industry.

EDM BRASS WIRES:

EDM Brass Wires_Gradient Wire Products Pvt. Ltd. EDM Brass Wires_Gradient Wire Products Pvt. Ltd.
Technical Specification:

Grade Diameter
Chemical Composition Tensile Strength
Elongation
(mm) (Inch) N / mm2 P.S.I
S 0.20 0.008 CuZn37 550 80300 <=20
0.25 0.010 To to
0.30 0.012 600 87300

H 0.20 0.008 CuZn37 900 131400 <= 2
0.25 0.010 To To
0.30 0.012 1000 146000

Key Benefits:

  • Hard - high tensile strength, auto threadable, smooth surface finish .

  • Soft - smooth surface finish, good cutting speed.

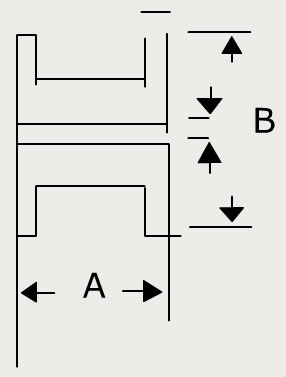

Spool Specification:

Type of Spool Flange Length Bore weight per spool No of spool
per Box
In kgs. In Lbs.
P3 130 110 20 3.0 6.6 4
P5 160 115 20 5.0 11.0 4
P10 200 134 25 10.0 22.0 1
P15/20 250 140 34 20.0 44.0 1
K125 125 125 16 3.0 6.6 4
K160 160 160 22 6.0 13.2 2
K200 200 200 24 16.0 35.2 1
